NANO 1.155

Scope of Use

  • For permanent and long-term care
  • For paraplegic care
  • Very well suited for a wide range of medical conditions, including the severely afflicted
  • Users with loss of lower extremity function (lateral transfer, hand rim propulsion)

Efficiency

  • Permanent provision with possibilities for adapting to changes in function reduces follow-up costs
  • Extensive standard equipment minimises the need for costly custom design
  • Minimum wear due to high-quality attachments

Therapeutic Benefit

  • Maximum smoothness of ride and low tare weight encourage independence of the user
  • Fine adjustment of back element, seat and suspension enable adaptation to changes in function and individual user requirements
  • Extensive range of equipment for longterm users

Options

  • Retainer strap with buckle
  • Passive lighting
  • Hand compressor
  • Accessory net
  • Walking aid holder in conjunction with stepper tube
NANO

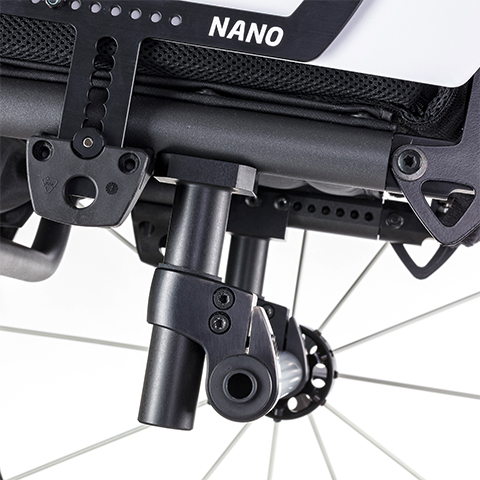

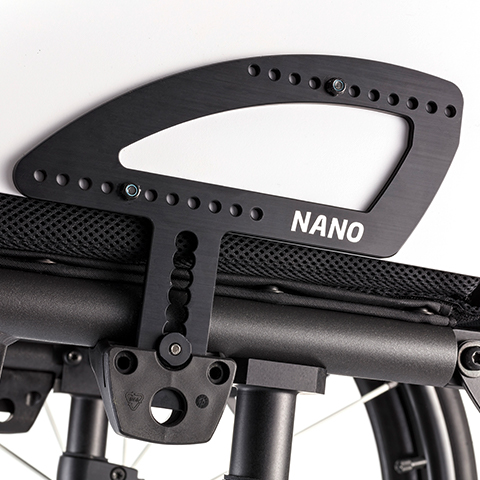

Vario element

NANO

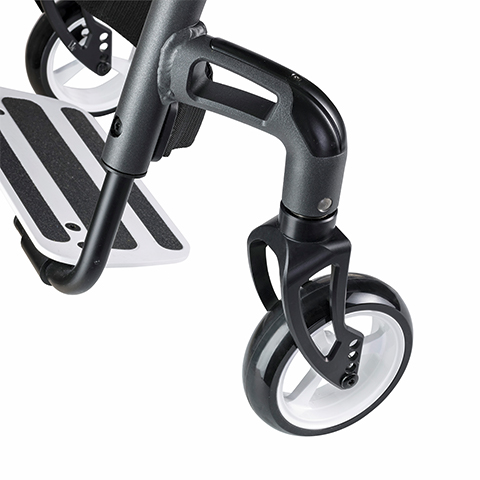

Castor wheel connection

NANO

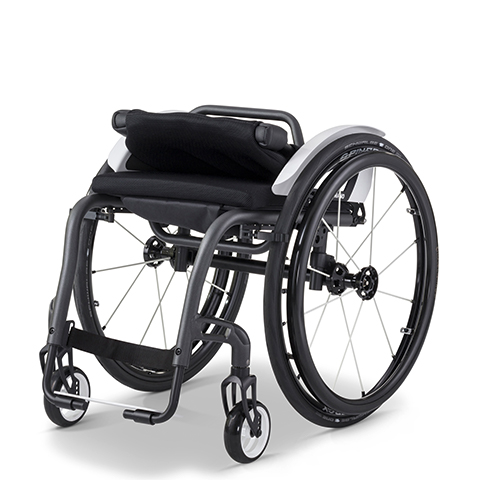

Folding back as standard feature

NANO

Elegant frame concept

Seat width 300 320 340 360 380 400 420 440 460 480 500
Width, ready to move 470 490 510 530 550 570 590 610 630 650 670
Seat depth 380 / 400 / 420 / 440 / 460 / 480 / 500
Seat height front / rear 450 to 530 / 360 to 510
Total height Seat height rear + back height
Back height variable from 250 to 450 + - 15 mm
Lenght with footrest 720 - 920 (depending on frame length, wheel size and axle position)
max. User weight 130 kg
Empty weight min. 9,5 kg
Permissible total weight max. 145 kg
Transport weight 6.5
Drive wheel 600 (24")
Drive wheel 635 (25")
Drive wheel 660 (26")

Dimensional tolerances ± 10 mm, ± 2°, data subject to design changes
