NEW iCHAIR MC2 and iCHAIR ORBIT 2
A New Generation of Power Wheelchairs
Discover the latest generation of modular power wheelchairs from MEYRA: the new NEW iCHAIR MC2 and the iCHAIR ORBIT 2. Both models offer well-thought-out solutions for individual mobility, maximum adaptability, and uncompromising comfort – ideal for a wide range of needs, from standard to high-end care.
MODULAR CONCEPT – FULL FLEXIBILITY FOR USERS AND DEALERS
NEW iCHAIR MC2 and iCHAIR ORBIT 2 are based on an entirely new modular system. Each model is fully customizable and can be precisely adapted to different medical conditions and user groups. Thanks to the plug-and-play principle, the seat unit, lift & tilt function, powerbase, and control unit can be quickly and easily adjusted or exchanged – both during initial delivery and later in the care process. This high flexibility not only reduces inventory and effort for dealers but also provides users with a future-proof wheelchair that grows with their needs.
Dealer Benefits – Optimized for Service & Consultation
- Significantly reduced inventory thanks to flexible configurability
- Quick and easy adjustment thanks to modular design
- Component changes possible in no time
- Suitable for both standard and complex care
- Ideal for consultations, trial fittings, and demonstrations

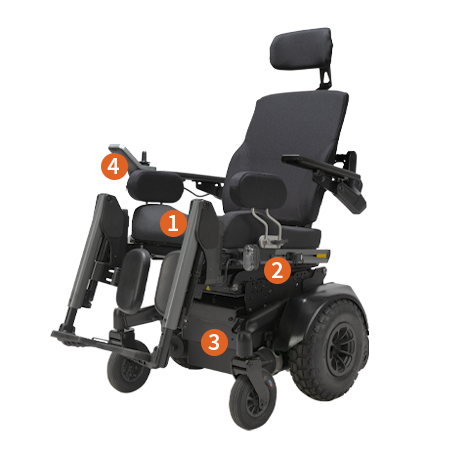

COMPONENTS AT A GLANCE
1. Seat Unit (MySeat®)
Comfortable seating solutions, individually configurable and adaptable to changing conditions. MySeat® is the core element of both models – independent of the powerbase used.
2. Lift & Tilt
Seamless positioning – for maximum comfort, pressure relief, and daily usability
3. Powerbase
Choice of front-wheel, mid-wheel, or rear-wheel drive – tailored to the user’s environment, driving dynamics, and functional needs
4. Electronics
LinX or R-Net control – intuitive to operate, individually configurable
COMFORT MEETS PERFORMANCE
NEW iCHAIR MC2 and iCHAIR ORBIT 2 impress with ergonomic solutions that focus on comfort, safety, and driving performance. The iCHAIR ORBIT 2 excels with its compact design and agility indoors, while the NEW iCHAIR MC2 offers a robust base for versatile, outdoor-oriented use
The innovative MySeat® seat unit forms the heart of both models – it is highly adaptable and can later be adjusted to new requirements. The wheelchair adapts to the person – not the other way around.
OUR MODEL: HANS JÜRGEN
For the photoshoot of the two power wheelchairs, we were able to collaborate with Hans Jürgen Rohe – an experienced wheelchair user and well-known travel blogger under the name „Hans Jürgen rollt“. His expertise lies particularly in traveling and active everyday life. His valuable insights are especially helpful when touring across various terrains or while traveling.
More about his experiences on Facebook: facebook.com/hansjuergenrollt
Technical data
Dimensions in mm, weights in kg, wheels in inches, dimension tolerance ± 10 mm
iCHAIR ORBIT 2 | NEW iCHAIR MC2 | |
| Seat width in mm | 380, 430,480, 530 | The technical data for the NEW iCHAIR MC2 |
| Seat depth in mm | 400 – 550 | |
| Front seat height (FSH) in mm | 425, 460, 495 / 440, 475, 510 | |
| Length in mm | 111 – 133 | |
| Back height in mm | 520, 570 / 520, 570 / 572, 620 | |
| Lower leg length in mm | 340 – 480 / 280 – 450 | |
| Armrest height in mm | 250 – 360 / 220 – 380 | |
| Length with footrests centre in mm | 1.200 – 1.350 / 1.100 – 1.200 | |
| Length without footrests in mm | 930 | |
| Width 12 inch ready to drive | 600 / 600 / 640 / 680 / 800 | |
| Width 14 inch ready to drive | 640 / 640 / 640 / 680 / 800 | |
| Height without headrest | 940 – 1.180 | |
| Transport height min. | 680 – 780 | |
| Obstacle height min. | 60 | |
| Turning radius with central legrest | 700 | |
| Turning radius with central legrest | 800 | |
| Ground clearance | 70 | |
| Empty transport weight basic equipment min. in kg | 120 - 165 | |
| Permissible total weight incl. options in kg | 330 | |
| Max. load in kg | 10 | |
| Driving speeds | 6 / 10 | |
| Motor power W | 2 x 180 / 2 x 350 | |
| Range | 30 – 45 | |
| Permissible gradients | 15 % | |
| Type of steering | indirect | |
| Electric seat tilt | 0° to 30° / 0° to 50° | |
| Back angle electric | -10° to 30° / -10° to 50° / 0° to 80° | |
| Mechanical seat tilt | 0°, 4°, 7°, 10° |
