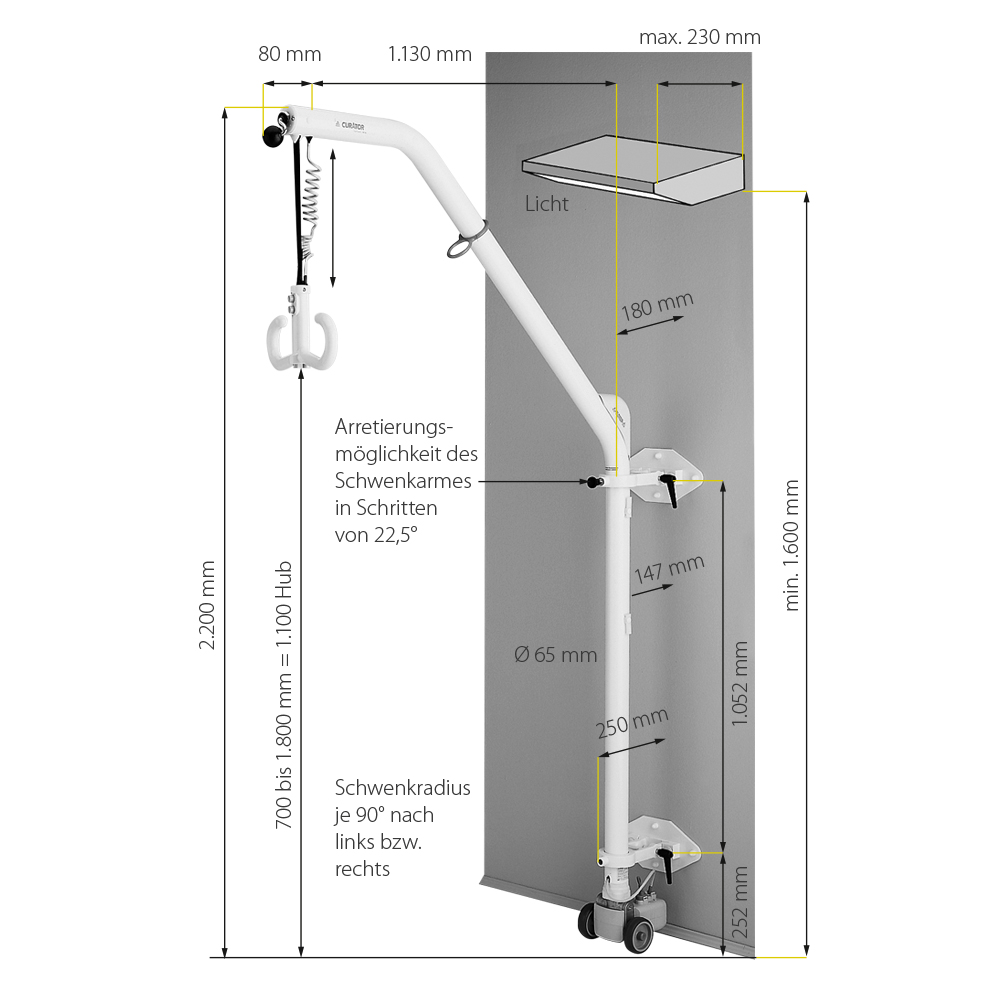

Curator wall lifting device
- relieves nursing staff
- can be independently operated by
patient - efficient motor
- very robust
- large pivoting range
- simple operation via carrying
bracket or manual switch (optional) - fast and easy to convert
- space-saving
- can be lowered manually in the
event of power failure

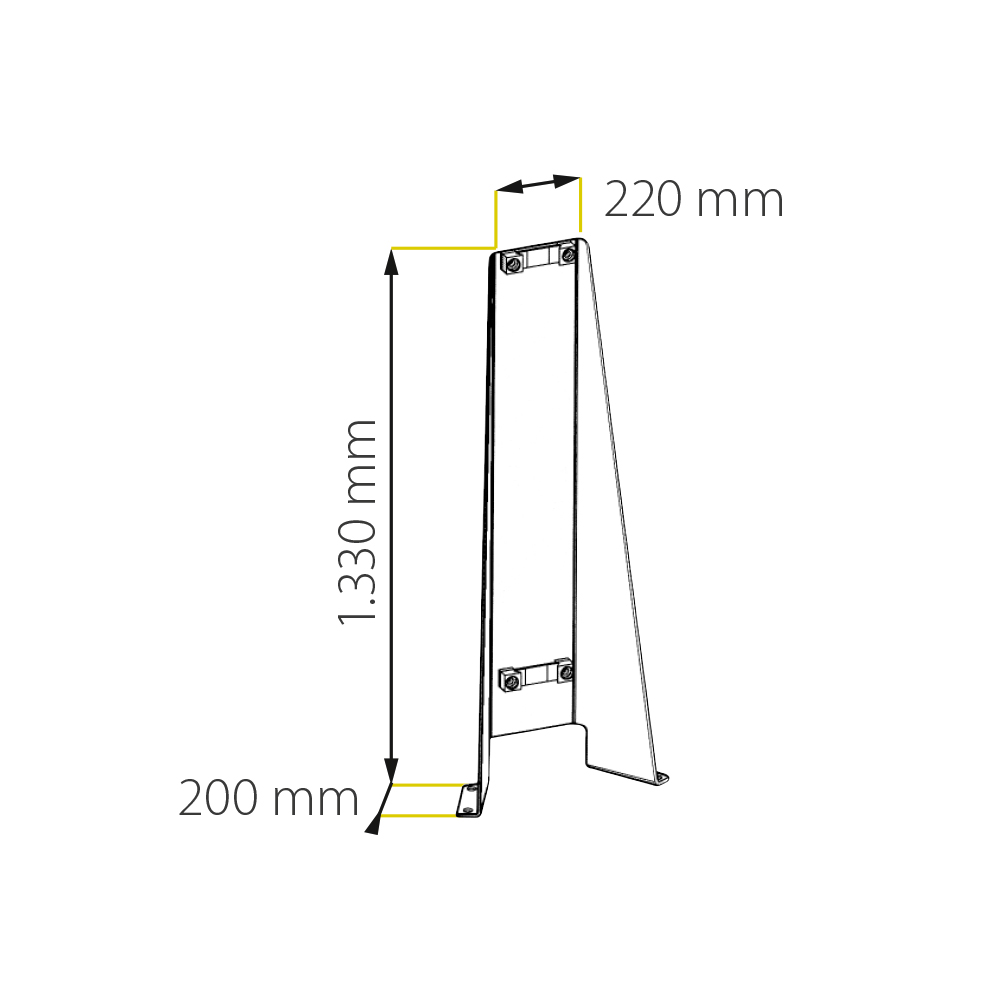

CURATOR free-standing lifting device
- for secure lifting device set-up
away from walls - firm attachment to floor
- user-friendly
- maximum carrying load dependent
on the floor structure – 140 kg
CURATOR floor to ceiling support
- for secure lift set-up away from
walls - can be clamped
- for room heights of 2.30-3.10 m
- mounted to floor and ceiling
without the need of tools
(tightened by turning the inner
tube) - weight approx. 32 kg

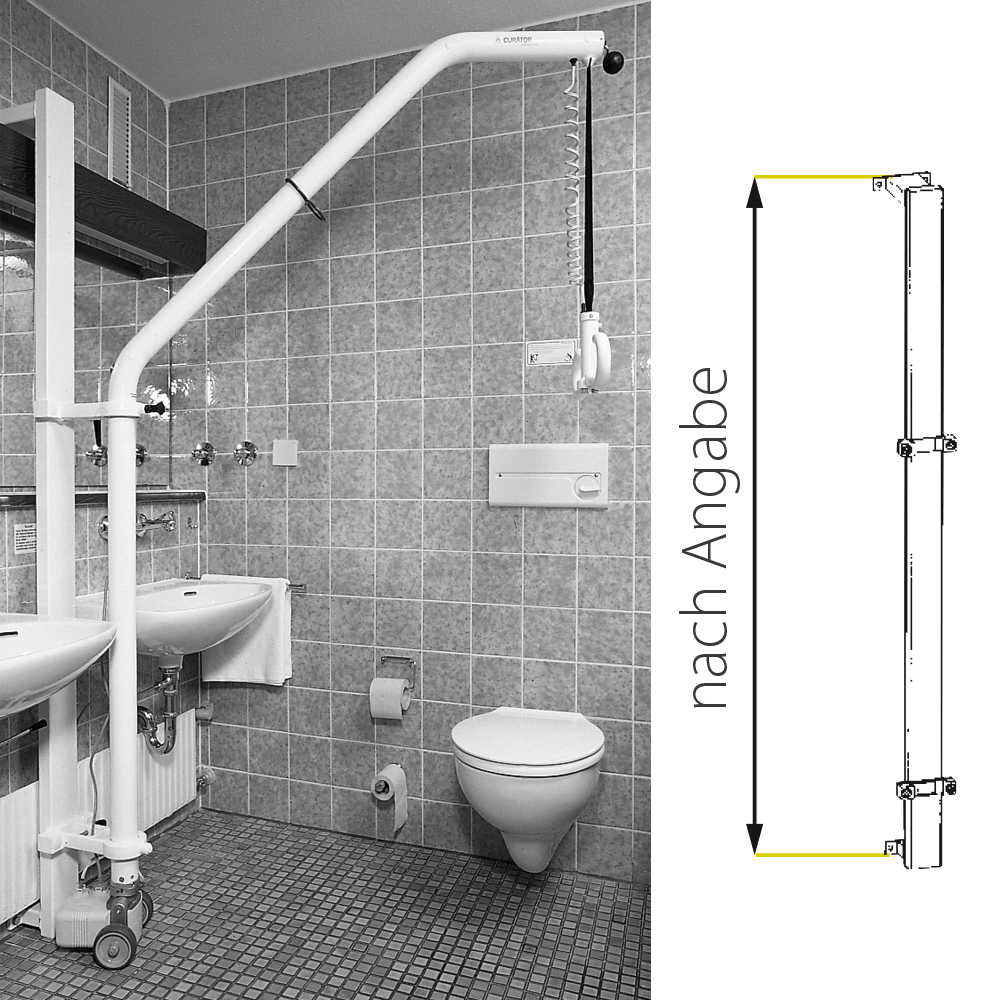

CURATOR floor-wall support
- for secure lifting device set-up
next to walls - solid mounting to wall
- prepared to your measurements
| Name |
|---|
| Curator wall lift, without wall bracket Order-Nr.: 3710000 |
| Curator wall bracket (pair) including fittings (for concrete) Order-Nr.: 3700001 |
| Curator wall bracket (pair) including fittings (universal) Order-Nr.: 3700060 |
| Curator wall bracket (pair) including fittings (unilateral, drywall) Order-Nr.: 3700061 |
| Curator wall bracket (pair) including fittings (bilateral, drywall) Order-Nr.: 3700062 |
| Replacement plugs Order-Nr.: 3700002 |
| Spacer 10 mm Order-Nr.: 3700041 |
| Spacer 20 mm Order-Nr.: 3700042 |
| Spacer 40 mm Order-Nr.: 3700043 |
| Spacer 80 mm Order-Nr.: 3700044 |
| Spacer 100 mm Order-Nr.: 3700045 |
| CURATOR free-standing lifting device Order-Nr.: 3700055 |
| CURATOR toilet sling Order-Nr.: 3700059 |
| CURATOR floor to ceiling support Order-Nr.: 3700056 |
| CURATOR floor-wall support Order-Nr.: Custom build floor-wall support |
| Load capacity: | 140 kg |
| Hoist speed: | approx. 20 mm/sec |
| Drive: | electric motor 230 V/50 Hz |
| Duty cycle: | 1 min. / 9min. |
| Safety class: | IP 56 |
| Electrical connection: | 3.5 m cable to plug socket 230 V/ |
| Control system: | pneumatic buttons integrated |
| Material: | stainless steel or aluminium |
| Carrying equipment: | wear-resistant webbing |
| Surface: | powder coating |
| Colour: | pure white RAL 9010 |
| Weight: | approx. 20 kg |
The user manual is included with the product.
