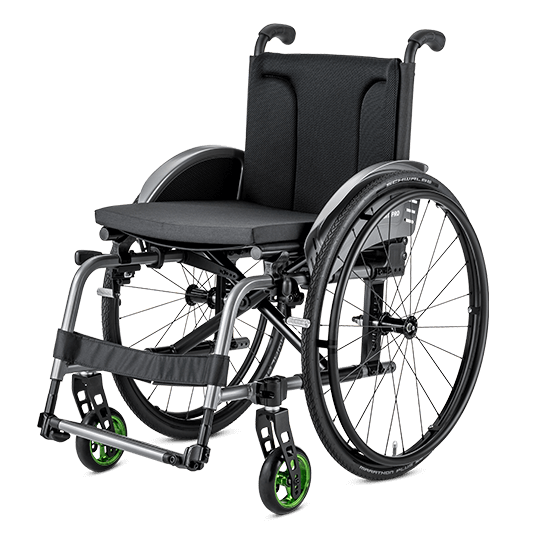

Avanti Pro 1.735

Fields of Application

  • Low cost and economic active folding wheelchair with a continuous frame and integrated footrests
  • Compatibility for Meyra building block system
  • User weight upto 135 kg and seat width 58 cm
  • Adaptive wheelchair for daily use
  • Longterm care with high adaptation needs
  • Well-suited for many disease patterns
  • For spinal paralysis care

Adjustment

  • 2 frame lengths
  • Seat width 36 - 58 cm
  • Seat depths 35 - 50 cm
  • Back height 34 - 44 cm
  • The maximum possible seat height difference from front seat height to back seat height is 7 cm
  • Four center of gravity settings selectable
  • 3° wheel camber possible (optional)

Operation

  • With the adjustment possibilities the user can propel the manual wheelchair with the handrims
  • The wheelchair can be folded for transport and the wheels are removable
  • The wheelchair can be braked with pressure or drum brakes

Options

  • Antikipprolle
  • Anti tip wheel
  • Transit castors
  • Height adjustable push handles
  • Stabilising bar
  • Seat belt
  • Therapy table
  • Sliding board
  • Crutch holder
  • Brake lever extension
  • Seat cushion
  • Drum brakes
  • Xtrends articles
Avanti Pro

PRO design

Avanti Pro

Light

Avanti Pro

Stays on track

Avanti Pro

Individual chassis adjustment

Seat width 360 - 580 360 - 580
Width ready to go SB + 1,900 (with side guard Code 100 SW +1,800)
Width folded 280
Seat depth 350 - 430 460 - 500
Seat height front / rear 440 - 520 / 420 - 520 440 - 520 / 420 - 520
Overall height 920 920
Back rest height 340 - 440 340 - 440
Arm support height (Code 81) 200 - 290 200 - 290
Length with footrests 870 - 960 925 - 1,015
max. Client weight 135 kg
Empty weight min. 11 kg
Permitted overall weight max. 150 kg
Transport weight 8,5
Rear wheel 610 (24")
Seat inclination 0° - 10°

Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
