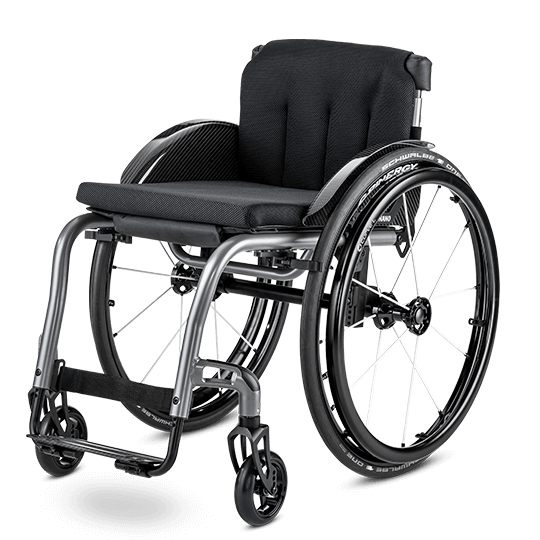

NANO 1.155

Scope of Use

  • For permanent and long-term care
  • For paraplegic care
  • Very well suited for a wide range of medical conditions, including the severely afflicted
  • Users with loss of lower extremity function (lateral transfer, hand rim propulsion)

Efficiency

  • Permanent provision with possibilities for adapting to changes in function reduces follow-up costs
  • Extensive standard equipment minimises the need for costly custom design
  • Minimum wear due to high-quality attachments

Therapeutic Benefit

  • Maximum smoothness of ride and low tare weight encourage independence of the user
  • Fine adjustment of back element, seat and suspension enable adaptation to changes in function and individual user requirements
  • Extensive range of equipment for longterm users

Options

  • Retainer strap with buckle
  • Passive lighting
  • Hand compressor
  • Accessory net
  • Walking aid holder in conjunction with stepper tube
NANO

Vario element

NANO

Castor wheel connection

NANO

Folding back as standard feature

NANO

Elegant frame concept

Seat width300320340360380400420440460480500
Width, ready to move470490510530550570590610630650670
Seat depth380 / 400 / 420 / 440 / 460 / 480 / 500
Seat height front / rear450 to 530 / 360 to 510
Total heightSeat height rear + back height
Back heightvariable from 250 to 450 + - 15 mm
Lenght with footrest720 - 920 (depending on frame length, wheel size and axle position)
max. User weight130 kg
Empty weightmin. 9,5 kg
Permissible total weightmax. 145 kg
Transport weight6.5
Drive wheel600 (24")
Drive wheel635 (25")
Drive wheel660 (26")

Dimensional tolerances ± 10 mm, ± 2°, data subject to design changes
