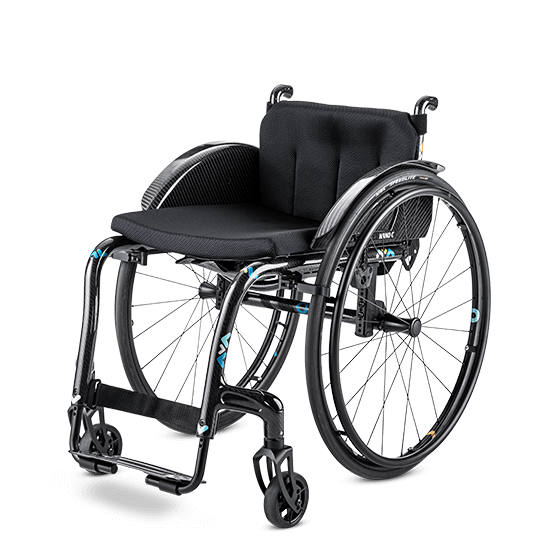

NANO C 1.158

Scope of Use

  • For permanent and long-term care
  • For paraplegic care
  • Very well suited for a wide range of medical conditions, including the severely afflicted
  • Users with loss of lower extremity function (lateral transfer, hand rim propulsion)
  • Very good loading properties

Efficiency

  • Permanent provision with possibilities for adapting to changes in function reduces follow-up costs
  • Extensive standard equipment minimises the need for costly custom design
  • Minimum wear due to high-quality attachments

Therapeutic Benefit

  • Maximum smoothness of ride and low tare weight encourage independence of the user
  • Fine adjustment of back element, seat and suspension enable adaptation to changes in function and individual user requirements
  • Extensive range of equipment for longterm users

Options

  • Retainer strap with buckle
  • Passive lighting
  • Hand compressor
  • Accessory net
  • Walking aid holder in conjunction with stepper tube
NANO C

Monocoque frame

NANO C

Elegant frame concept

NANO C

Castor wheel connection

NANO C

Folding back as standard feature

Seat width 380 400 420 440
Width, ready to move 540 560 580 600
Seat depth 380 / 400 / 420 / 440 / 460
Seat height front / rear 450 to 530 / 360 to 510
Total height Seat height rear + back height
Back height variable from 250 to 450 + - 15 mm
Lenght with footrest 800 - 982 (depending on frame length, wheel size and axle position)
max. User weight 100 kg
Empty weight 7,5 kg
Permissible total weight 100 kg
Transport weight 5
Drive wheel 600 (24")
Drive wheel 635 (25")
Drive wheel 660 (26")
Brake test according
to STANDARD		 7°

Dimensional tolerances ± 10 mm, ± 2°, data subject to design changes
