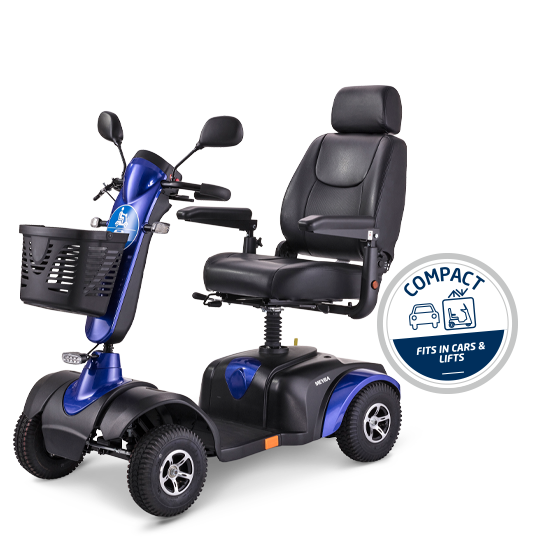

CL 409 1.254

Adjustment

  • The angle of the backrest, the backrest extension and the seat and armrest height are adjustable
  • The seat width can be adjusted continuously using the armrests
  • The seat has adjustable rails and is 360° rotatable

Operation

  • multifunctional LCD display in eleven languages
  • Speed reduction in curves
  • Lighting in line with the German Road Traffic Act (StVO), including
    indicators, hazard and brake lights
  • Hand brake
  • Cruise control

Options

  • Very easy to use
  • Manual smooth steering
  • Joystick rocker for thumb and finger control
  • Mechanical unlocking of spring-loaded brake
  • Self-explanatory panel with speed selection options
CL 409

Latest LED technology

CL 409

Simple user guidance

CL 409

Extremely robust cassette frame

CL 409

Suspended comfort seat system

Length 1.200
Width 610
Back height 450
Seat height 420 - 480
Seat depth 410
Adjustable seat width 450 - 670
Transport height ( with folded steering column and without seat) 600
Spring-loaded seat
Automatic safety brake
Number of wheels 4
Steering wheel diameter 260
Drive wheel diameter 260
Ground clearance 60
Obstacle avoidance max. 60
Turning circle radius 1.500
Continuous motor power 210 W
Peak motor power 850 W
 Batteries 2x 12 V; 35 Ah / 28,1
Charging device 4 A
electronics 70 A
Tare weight up to 35 km
Permissible slopes / gap 9° (6 %)
Tare weight 91
Maximum user weight 136
Maximum total weight 230
Speed 6

Dimensions in mm, weight in kg, wheels in inches, speeds in km/h
Dimensional tolerances of ± 10 mm
