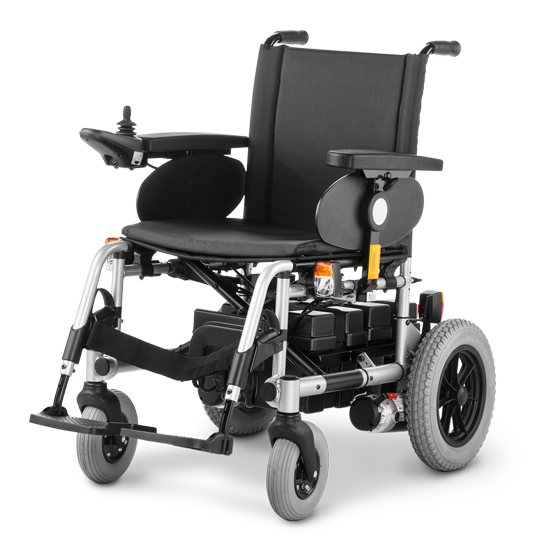

Clou 9.500

Fields of Application

  • At home, in school, at work or in a home
  • Transport by means of a foldable frame and removable parts makes it small enough even for small cars
  • For people who have clearly defined demands on their wheelchair and hardly any change in functionality
  • When the wheelchair user still has adequate torso stability
  • As a transport aid it can be operated by an attendant who is unable to push a manual wheelchair

Adjustment

  • Seat width of 380 - 480 mm can be adjusted via the arm rests
  • Various arm rests
  • Various leg rests
  • Different seat and back systems
  • Swivel-away operating module (optional)
  • Programmable driving performance
  • Various joysticks

Operation

  • Speed steplessly pre-selectable up to 6 km/h
  • Central brake release useroperated
  • The wheelchair can be locked via software
  • Battery easy to recharge by connecting it to the operating module
  • Automatic battery contact
  • Easy transfer as the arm rests can be removed completely
  • The wheelchair can be folded for transport, the back can be removed

Options

  • Battery container contacts have reverse battery protection
  • Error diagnosis via battery status display or programming device or PC software
  • Lighting
  • Rear-view mirror
  • Stair climber
  • Safety belts
  • Steering for attendant
  • Walking aid holder
  • Canopy
  • Pelvic belt
  • Therapy table
  • Operating hour counter

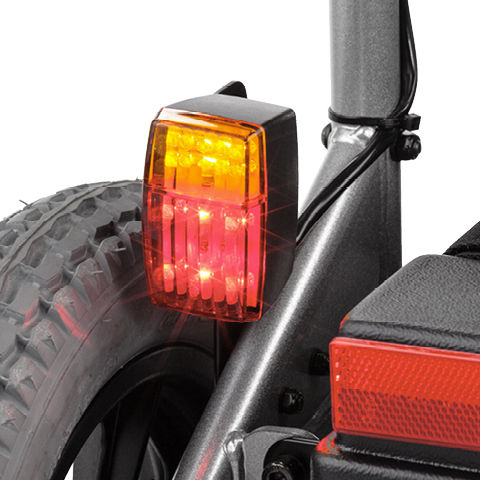

Clou

Long-life LED light optionally available

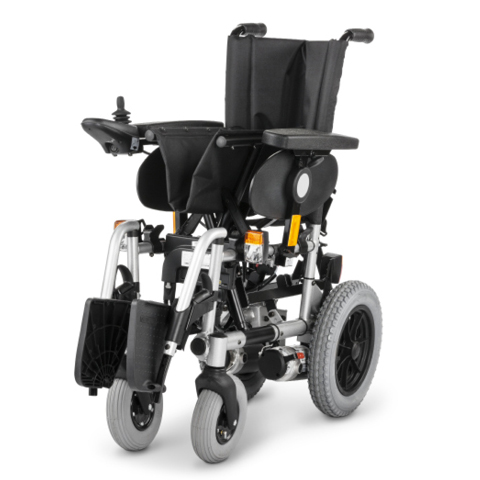

Clou

Folded

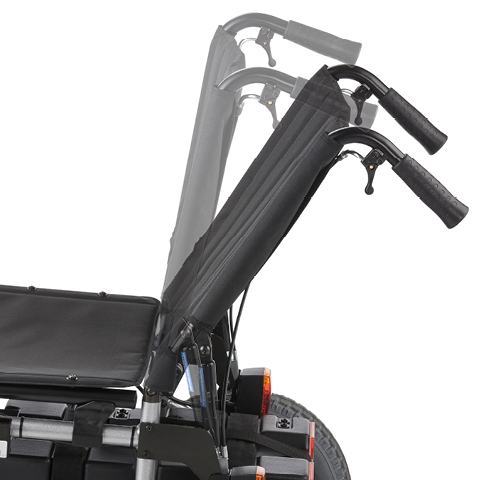

Clou

30° backrest adjustment optionally available

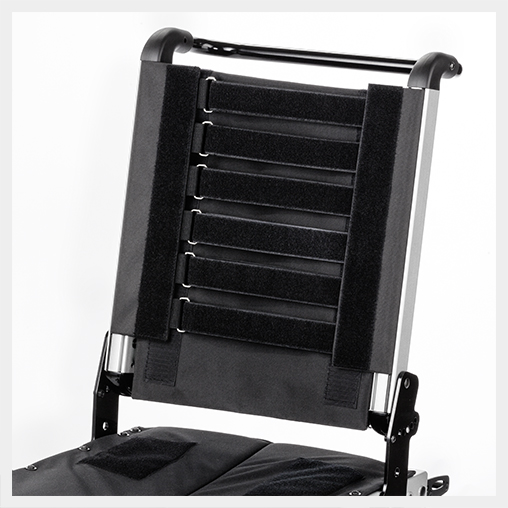

Clou

Adjustable seat and back

Seat width 380 - 500 / 380- 550
Seat depth 430
Back rest height (w/o
cushion)		 400
Shank length 360 - 500
Armrest height 190 - 300
Seat height front 510
Length with legrests 1,100
Length without legrests/
anti-tip wheel		 810
Width min./max. 600 / 700
Height without headrest 910
Transport dimension width 600
Transport dimension length 810
Transport dimension height
min.		 910
Wheel size front 200 x 50 (8")
Wheel size rear 320 x 60 (12,5")
Max. obstacle height
max.		 60
Turning radius 1,000
Empty transport weight min. 73
Client weight max. 120
Permitted overall weight 210
Additional loading max. 10
Back angle, mechanical 0° to 30°
Driving speeds km/h 6
Motor performance 2 x 180
Max. range performance 30
Permitted gradient 12 %
Type of steering indirect

Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
