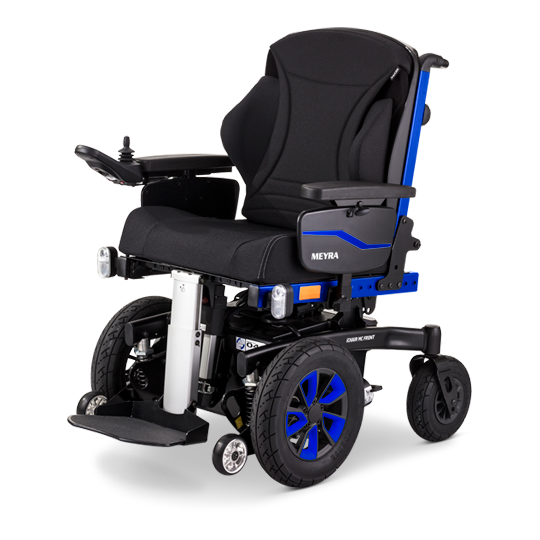

iCHAIR MC FRONT 1.613
Fields of Application
- The new agile power wheelchair for indoor- and outdoor use
- Practical for outdoor use due to big tyres and 10 km/h Version as an option
- Easy to maneuver due to compact measurements and perfect agility
Adjustment
- Seat width from 380 - 650 mm by means of simple telescoping side guards
- Adjustable seat depth of 400 - 560 mm
- Adjustable back, contoured seat system and preparation für external seats systems according to individual needs
- individual Myseat-System
- Electrical 60° back angle adjustment (optional)
- Electrical 26° seat angle adjustment for effective pressure relief (optional)
Operation
- Tested VR2 and R-Net technology for unsurpassed performance and versatility
- 5 speeds
- Compact dimensions and suspension are standard and make for safe travelling
options
- MySeat System
- Crutch holder
- Safety belt with buckle
- Rear view mirror
- Pelvic belt
- Therapy table swivelling
- USB charging slot
The central leg support permits a 90° knee angle
14" drive wheels, front
Different optional seat units
High manoeuvrability due to compact overall size
| Seat width | 380 – 650 |
|---|---|
| Seat depth | 400 – 560 / 400 – 560 / 480 – 530 |
| Back rest height | 450 – 500 / 530 – 570 / 640 |
| Shank lenght in cm | 280 – 430 / 330 – 450 |
| Arm support height | 240 – 350 |
| Front seat height | 440 – 510 |
| Length with footrests | 1,065 – 1,130 |
| Length without footrests | 910 |
| Width ready to go | 620 |
| Height without headrest | 960 – 1,080 |
| Transport dim. width | 620 |
| Transport dim. length | 910 |
| Transport dim. height min. | 610 |
| Front wheel size | 352 x 75 (14") |
| Rear wheel size | 230 x 70 (9") |
| Max. obstacle height | 60 |
| Turning radius | 625 |
| Empty transport weight | 108 |
| Client weight max. | 160* |
| Permitted overall weight | 280 |
| Additional loading max. | 10 |
| Driving speeds | 6 / 10 |
| Motor performance | 2 x 220 / 2 x 300 |
| Driving range max. | 15 |
| Permitted gradient 38 Ah (5h), 45 Ah (20h) max. in km | max. 28 |
| Permitted gradient 63 Ah (5h), 73 Ah (20h) max. in km | max. 40 |
| Permitted gradient | 11 % |
| Type of steering | indirect |
| Electric lift | 300 |
| Electric tilt-in-space | 4° to 26° / 0° to 50° |
| Mechanical tilt-in-space | 0° to +10° |
| Back angle electric | -10° to +50° |
| Back angle mechanical | -10° to +30° |
Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
* 160 kg with SW 46/49/53, 100 kg with SW 40/43
With Lift: 140 kg with SW 46/49/53, 100 kg with SW 40/43
