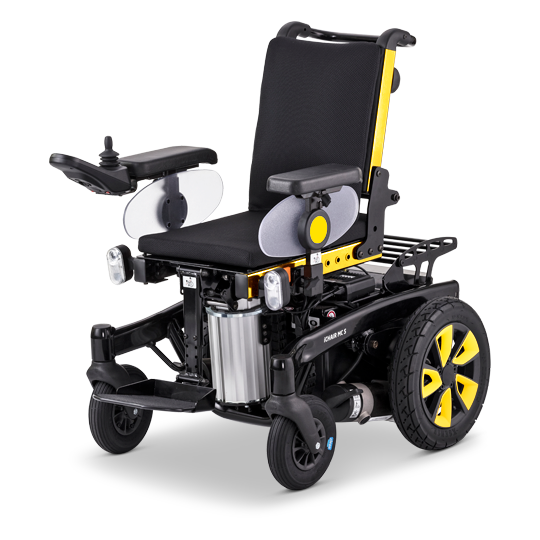

iCHAIR MC S 1.616
Fields of Application
- The proven mc2 für indoor and outdoor impresses with junior seat and junior option
- Outdoors: good rear suspension
- Indoors: compact drive with integrated anti-tilt wheels makes for ease of use in tight spaces
- Hublift 200 mm optional
Adjustment
- Seat width from 300 - 440 mm by means of simple telescoping seat plate and side guards
- Adjustable seat depth of 300 - 400 mm
- The central leg support allows a knee angle of 90°
- Adjustable back, contoured seat system and preparation für external seats systems according to individual needs
- Electrical 40° back angle adjustment (optional)
- Electrical 22° seat angle adjustment for effective pressure relief and 30° in conjunction with wheelchair lift (optional)
Operation
- Tested VR2 and R-Net technology for unsurpassed performance and versatility
- 5 speeds
- Compact dimensions and suspension are standard and make for safe travelling
Optionen
- Luggage rack
- Safety belt with buckle
- Rear view mirror
- Pelvic belt
- Kerb climber
- Therapy table swivelling
Central leg support, 90° knee angle
200 mm seat lift, tilt-in-space
Active LED lighting
transparent side guards
| Total width | 580 - 800 |
|---|---|
| Seat width | 300 - 440 |
| Seat depth | 300 - 400 |
| Back rest height | 390 / 440 |
| Shank lenght | 250 - 350 |
| Arm support height | 180 - 250 |
| Front seat height | 420 - 470 |
| Length with footrests | 970 |
| Length without footrests | 790 |
| Width ready to go | 580 |
| Height without headrest | 890 - 925 |
| Transport dim. width | 580 |
| Transport dim. length | 790 |
| Transport dim. height min. | 610 |
| Transport dim. height without headrest | 660 |
| Front wheel size | 190 x 50 (8") |
| Front wheel size | 230 x 70 (9") |
| Rear wheel size | 320 x 60 (12,5") |
| Max. obstacle height | 60 |
| Turning radius | 840 |
| Empty transport weight | 89 |
| Client weight max. | 175 |
| Permitted overall weight | 20 |
| Additional loading max. | 10 |
| Driving speeds | 6 / 10 |
| Motor performance | 2 x 180 / 2 x 300 |
| Driving range max. | 40 |
Permitted gradient 38 Ah (5h), 45 Ah (20h) max. in km | max. 28 |
Permitted gradient 63 Ah (5h), 73 Ah (20h) max. in km | max. 40 |
| Permitted gradient | 15 % |
| Type of steering | indirect |
| Electric tilt-in-space | 0° to +22° |
| Electric tilt-in-space i.c.w. seat lift | 0° to +30° |
| Mechanical tilt-in-space | 0° to +10° |
| Back angle electric | -10° to +35° |
| Back angle mechanical | -10° to +30° |
| Electric seat lift | 200 |
