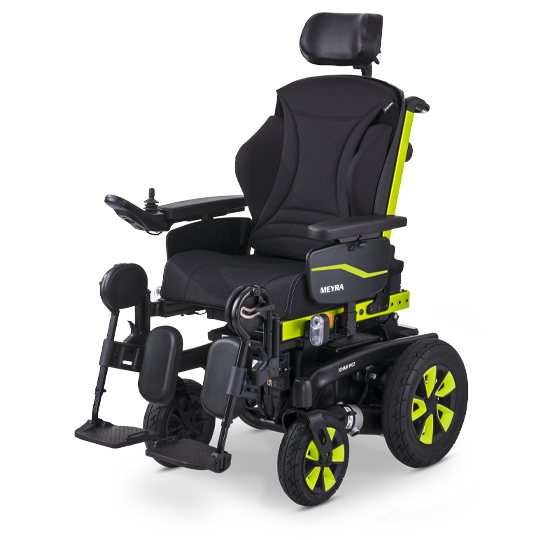

iCHAIR MC2 1.611

Fields of Application

  • The new agile electric indoor-outdoor wheelchair impresses with sophisticated features and a fresh designn
  • Standard client weight of 160 kg meets XL specifications
  • Outdoors: long sitting periods are made easier through good rear wheel springs, standard big tires
  • Indoors: compact drive with integrated anti-tilt wheels makes for ease of use in tight spaces

Adjustment

  • Seat width from 380 - 650 mm by means of simple telescoping seat plate and side guards
  • Adjustable seat depth of 400 - 560 mm in six stages
  • Various seat systems to meet individual needs
  • Contoured ErgoSeat seat system in various dimensions
  • Electrical 60° back angle adjustment for user comfort
  • Electrical 28° seat angle adjustment for effective pressure relief

Operation

  • Tested VR2 and R-Net technology for unsurpassed performance and versatility
  • Speeds of 6 and 10 km/h pre-selectable in 5 steps
  • Compact dimensions and suspension are standard and make for safe travelling

Options

  • MySeat seat system
  • Luggage rack
  • Crutch/cane holder
  • Safety belt with buckle
  • Odometer
  • Operating hours counter
  • Rear view mirror
  • Pelvic belt
  • Kerb climber
  • Occupant restraint system
iCHAIR MC2

Leg rests that can adjusted electrically,

optionally available

iCHAIR MC2

Comfortable control

iCHAIR MC2

Active LED lighting

iCHAIR MC2

Front wheels with aluminium rims

Seat width 380 - 650
Seat depth 400 - 560 / 400 - 560 / 500 / 480 - 530
Back rest height 450 - 500 / 530 - 570 / 640 / 640
Shank lenght 280 - 430 / 350 - 500 / 350 - 500 / 350 - 500
Arm support height 240 - 350 / 180 - 290 / 140 - 250 / 180 - 290
Front seat height 430 - 530 / 500 - 600 / 560 - 650 / 580 - 680
Length with footrests 1,130
Length without footrests 830
Width ready to go 580 - 620
Height without headrest 930 - 1130
Transport dim. length 830
Transport dim. height min. 570
Front wheel size 260 x 70 (10")
Front wheel size 230 x 70 (9")
Rear wheel size 356 x 75 (14")
Rear wheel size 320 x 75 (12,5")
Max. obstacle height 70*
Turning radius 840
Empty transport weight min. 100
Client weight max. 160
Permitted overall weight 320
Additional loading max. 10
Driving speeds 6/10
Motor performance 2 x 220 / 2 x 350
Driving range max. 40
Max. range in km, with battery 43 Ah (5h), 50 Ah (20h) 25 - 30
Max. range in km, with battery 63 Ah (5h), 73 Ah (20h) 35 - 40
Permitted gradient 15 %
Type of steering indirect
Electric lift 300
Electric tilt-in-space -2° to +26°
Mechanical tilt-in-space 0° to +10°
Back angle electric -10° to +50°
Back angle mechanical -10° to +30°

Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
*60 mm with 9“/12“ and 70 mm with 10“/14“ wheels
