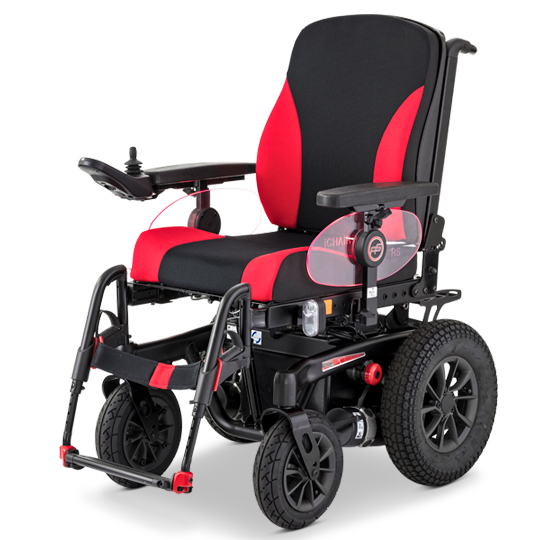

iCHAIR MC2 RS 1.615
- "Exceptionally sporty"
Fields of Application
- The new agile electric indoor-outdoor wheelchair impresses with sophisticated features and a fresh designn
- Outdoors: long sitting periods are made easier through good rear wheel springs
- Indoors: compact drive with integrated anti-tilt wheels makes for ease of use in tight spaces
Adjustment
- Seat width from 380 - 650 mm by means of simple telescoping seat plate and side guards
- Adjustable seat depth of 400 - 560 mm in six stages
- Various seat systems to meet individual needs
- Contoured ErgoSeat seat system in various dimensions
- Electrical 60° back angle adjustment for user comfort
- Electrical 28° seat angle adjustment for effective pressure relief
Operation
- Tested VR2 and R-Net technology for unsurpassed performance and versatility
- Compact dimensions and suspension are standard and make for safe travelling
Options
- Luggage rack
- Crutch/cane holder
- Safety belt with buckle
- Odometer
- Operating hours counter
- Rear view mirror
- Pelvic belt
- Kerb climber
- Occupant restraint system
- Personenrückhaltesystem
15” drive wheels
Side guard lighting with custom engraving
Black-red RS design
Recaro seat in black Artificial leather
| Seat width | 380 - 650 |
|---|---|
| Seat depth | 400 - 560 / 480 - 530 |
| Back rest height | 530 - 570 / 640 |
| Shank lenght | 350 - 500 / 350 - 500 |
| Arm support height | 180 - 290 / 180 - 290 |
| Front seat height | 530 - 600 / 580 - 650 |
| Length with footrests | 1,130 |
| Length without footrests | 830 |
| Width ready to go | 580 - 635 |
| Height without headrest | 1.010 - 1.130 |
| Transport dim. length | 830 |
| Transport dim. height min. | 590 - 660 |
| Front wheel size | 260 x 70 (10") |
| Rear wheel size | 380 x 75 (15") |
| Max. obstacle height | 60 |
| Turning radius | 840 |
| Empty transport weight min | 111 |
| Client weight max. | 160 |
| Permitted overall weight | 320 |
| Additional loading max. | 10 |
| Driving speeds | 6 / 13 |
| Motor performance | 2 x 220 / 2 x 300 |
| Permitted gradient 63 Ah (5h), 73 Ah (20h) max. in km | 25 - 40 |
| Permitted gradient | 15 % |
| Type of steering | indirect |
| Electric lift | 300 |
| Electric tilt-in-space | -2° to +26° |
| Mechanical tilt-in-space | 0° to +10° |
| Back angle electric | -10° to +50° |
| Back angle mechanical | -10° to +30° |
