Maximum seat and backrest system selection, large tilt range

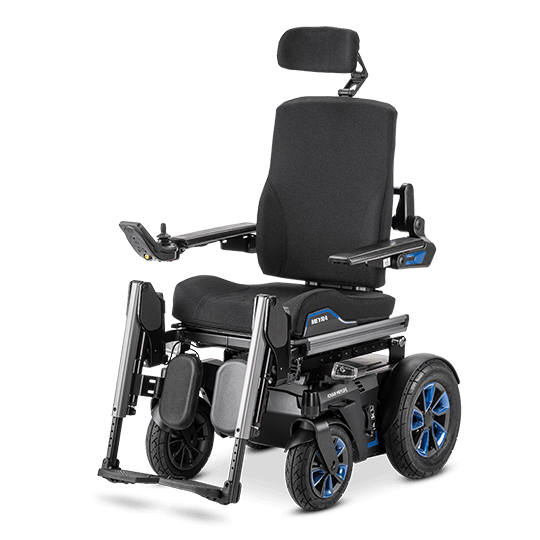

Many mechanical and electrical adjustment options are available for the basic model of the iCHAIR MEYLIFE.
The seat width-independent round tube backrest allows the integration of various seat and backrest systems.
Fields of Application
- For indoor and outdoor use, spring-loaded
- Fourfold spring-loaded drive unit (standard)
- For permanent and all-day use in independent mobility, even with severe functional disorders
- For working and active people needing a wheelchair for various aspects of everyday life
Adjustment
- Excellent cost-performance ratio for effective long-term fitting
- Long service life and high durability thanks to the use of highest quality materials
- Individually adjustable to the user’s changing needs
- The integrated cable concept enables very fast retrofitting of electrical adjustment options
- Long-term security in the supply of spare parts
- due to extensive specialist retailer and supply structure
Operation
- Ergonomic, biomechanical seat and back unit with coupled lowering of armrest
- MEYRA, Netti and Ride seat and round tube back systems ensure optimum modularity
- Effective pressure relief and relaxed positioning for long sitting periods thanks to large electrical adjustment ranges
- The all-wheel spring system (fourfold suspension) significantly reduces shock to the user's spine and trunk. This is particularly necessary for medical conditions
such as MS, ALS, Duchenne muscular dystrophy and tetraplegia. - Ideal for remaining mobile around the home
Options
- Rear-view mirror right
- Rear-view mirror left
- Rear marking tape
- Rear marking plate
- Luggage rack
- Immobiliser
- Retainer strap with buckle
- Four-point belt
- Therapy table
- Step climber
- Adapter set for DAHL docking station
An easily convertible design enables quick adaptation to the user
Biomechanical seat and back unit
New, sturdy legrests
The newly developed independent suspension (fourfold)
| Seat width 1 | 380 - 650 |
|---|---|
| Seat depth | 400 - 550 |
| Seat height 2,3 | 400 - 500 |
| Back height | 500 - 690 |
| Lower leg length 2 | 340 - 480 |
| Armrest height 2 | 220 - 380 |
| Length with footrests min. | 1,120 - 1,220 / 860 - 910 |
| Transport length | 860 |
| Transport width | 820 |
| Width, ready to move min. | 600 - 820 |
| Height without headrest | 930 - 1,200 |
| Obstacle height 6 | 70 |
| Turning radius min. (with footrests) | 940 |
| Front wheel size | 225 x 70 (9") 250 x 70 (10") |
| Rear wheel size | 320 x 60 (12,5") 350 x 75 (14") |
| Ground clearance min./max. | 70 |
| Min. transport weight empty | 133 - 195 |
| Max. user weight incl. additional load 5 | 120 / 160 |
| Permissible total weight incl. options | 370 |
| Max. additional load | 10 |
| Speed | 6 / 10 km/h |
| Motor power W | 220 / 300 / 350 |
| Range with battery 80 Ah C20 max. | 35 / 30 km |
| Permitted uphill / downhill gradient | max. 8.5° / 15 % |
| Castor / drive wheels | 9", 10" / 12.5", 14" |
| Seat lift, electric | 300 |
| Seat tilt, mechanical | 0° to 30° |
| Seat tilt, electric | 0° to 30°/50° |
| Back angle electric 4 | 0° to 60°, -10° to 50°, 0° to 80° |
| Drive | Rear |
Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
1) see category 01 Seat width
2) Seating systems contour cushion/Netti/Ride
3) measured with 0° seat angle
4) to pan
5) Max. user weight incl. additional load 136 kg for passenger transport in car
6) with 14"
