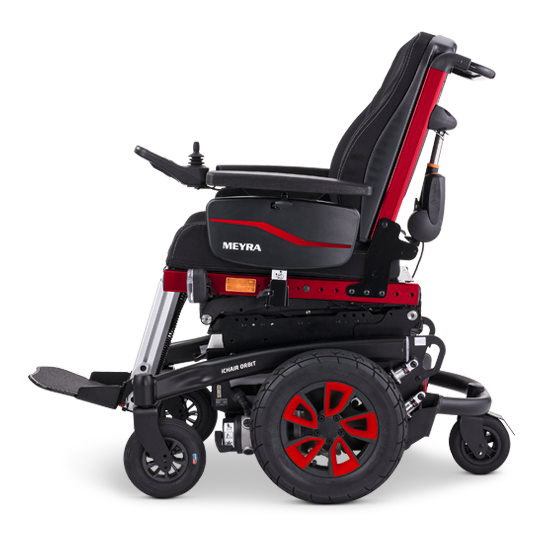

iCHAIR ORBIT 1.618

Fields of Application

  • For indoor and outdoor use, spring-loaded drive unit standard
  • Especially good when using indoors: turning on its own axis helps when manoeuvring in confined spaces
  • Precise manoeuvring thanks to rigidly attached castor wheels
  • The optional laterally suspended support castors enable easy and safe use of single panel ramps
  • For permanent and all-day use in independent mobility, even with severe functional disorders
  • For working and active people needing a wheelchair for various aspects of everyday life

Adjustment

  • Easy maintenance and a high level of serviceability guarantee efficiency
  • Little need for repair due to the use of high-quality and durable components
  • Modular design of the iCHAIR family enables compatibility of components
  • Numerous adjustment options allow individual adaptation
  • Simplified re-use due to optimum user limits, such as a standard user weight of 120 kg or 160 kg with increased motor power

Operation

  • The central legrest enables a 90° knee angle
  • Ideal for keeping mobile at home and at work
  • Effective pressure relief and relaxed positioning for long sitting periods thanks to large electrical adjustment ranges

Options

  • Crutch holder
  • Safety belt with buckle
  • Pelvic belt
  • Therapy table swivelling
  • USB charging slot
iCHAIR ORBIT

Maximum agility and high stability for precise manoeuvring

iCHAIR ORBIT

Compact dimensions thanks to minimum overall width and seat height

iCHAIR ORBIT

Utmost flexibility due to single or double support castor

iCHAIR ORBIT

High max. user weight of 160 kg

Seat width 380 – 650
Width 600/600/630/680 bei 12"
640/640/640/680 bei 14"
Seat depth 400 – 560 / 400 – 560 / 480 – 530
Lower leg length 280 – 450
Seat height front (without seat cushion) 430, 465, 500 / 440, 475, 510
Total height 960 – 1,150
Back height 450 – 500 / 530 – 580 / 640
Shank lenght in cm 280 – 450
Armrest height 240 – 350
Length with / without footrests 1,180 – 1,250, 1.060 – 1.150 / 930
Transport length min. 870 - 930
Transport width min. 600 – 680
Transport height min. 630 - 800
Front wheel size 200 x 50 (8")
Rear wheel size 364 x 75 (14")
Max. obstacle height 60
Turning radius 800 / 700
Ground clearance 70 - 80
User weight 120 / 160
Empty weight 120 – 160
Permissible total weight 270 / 330
Max. additional load 10
Speed 6 / 10
Motor power 2 x 180 / 2 x 350

Range max.

 25 – 35
35 – 40

Permitted uphill / downhill gradient

 15 %
Seat tilt, electrical 0° to 30° / 0° to 50° / -25 to 45
Back angle, electrical -10° to +50°
Seat tilt, mechanical 1°, 4°, 7°, 10°
Back angle. mechanical -10° to +30°
Seat lift, electrical 300
Steering type indirect
Stand-up aid with electrical tilt, lift 200 mm 0° to 30°

Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
