Scope of Use

  • Indoor and outdoor
  • Uneven terrain
  • Residential surroundings
  • Car, as driver and passenger

Efficiency

  • Easy to use and maintain
  • With Dahl docking station for driving a car independently

Therapeutic Benefit

  • Stable ride performance
  • High speeds of up to 13 km/h
  • Low seat height of 380 mm
  • Lift can be used as stand-up aid

Options

  • Belt with automatic winder
  • Therapy table, swivelling
  • Remote stop
  • Scratch and splash protection film
  • Mobile phone holder with charging adapter
  • Dahl docking adapter plate
  • Special controls

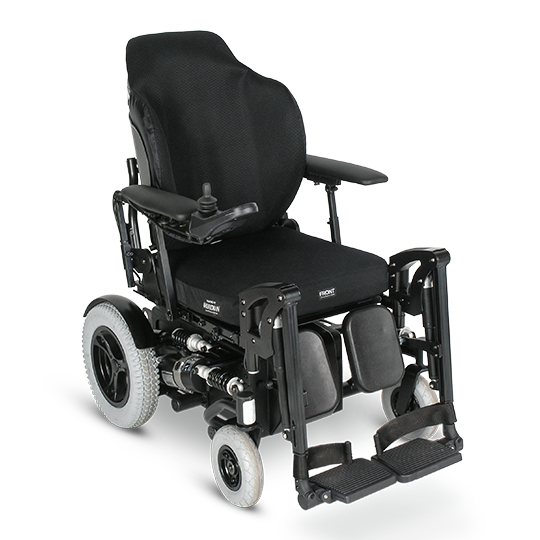

TA IQ RWD

With seat lift 300 mm

TA IQ RWD

Electrical seat angle adjustment

TA IQ RWD

Spring-loaded single-wheel suspension

Seat width  380 400 450 500 550
Seat depth

250 – 600 mm

Length without legrest

780 mm

Chassis width

630 mm

Seat height measured up to the seat plate 380 mm
Obstacle heigh 80 mm
Ground clearance 90 mm
Weight of the wheelchair without the cushion 155 kg
max. user weight

140 kg

Speed

6/10/13 km/h

Range

30 – 40 km

Electric seat lifter 300 mm
Turning radius

630 mm

Batteries

2 x 80 Ah

Engines

2 x 350 W

Electronic

R-net

Electric seat angle adjustment (optional)

50°

Electric seat advance

150 mm

Drive

Rear

Dimensions in mm, weights in kg, wheels in inches, dimensional tolerances ± 10 mm
