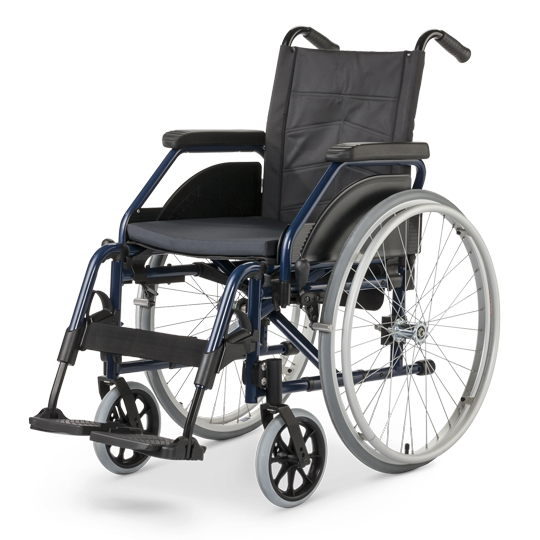

Eurochair 1.850

Fields of Application

  • Full equipment chair for long term provision in permanent everyday use
  • Well suited for provision of many disabilities with a high variety of adjustments
  • Mostly application at home, e.g. in case of geriatric provision, many neurological clinical pictures, rheumatism, leg amputation
  • In rehabilitation clinics to achieve therapeutic goals
  • Application for various kinds of drive

Adjustment

  • Manifold adjustment possibilities to the body measure of the user
  • Seat width from 380 - 500 mm
  • Chassis adjustment by means of an angle adjustable castor stem and bearing block
  • Back adjustment through adjustable belt
  • Variable back angle design
  • Seat depth adjustment from 400 - 460 mm serially
  • Selection of different armrests and leg supports
  • Wide selection of accessories
  • From 15 kg overall weight
  • User weight up to 150 kg

Operation

  • Foldable
  • Handrim drive/ push drive
  • Leg supports can be swivelled inwards or outwards
  • Lockable flip-back arm supports
  • All rear wheels incl. quickrelease axle
  • Pressure brake
  • Step aid serially

Options

  • Crutch holder
  • Reflectors
  • Anti-tip wheels
  • Horizontal pushing bar
  • Seat belt
  • Brake lever extension
  • Therapy table
  • Auxiliary Drive
  • Double handrims
  • Drumbrake for attendant
Eurochair

Knee lever brake

Eurochair

Leg rests can be swung inwards and outwards

Eurochair

Removable armrests

Eurochair

Rubber ferrules as standard

Seat width  380 400 430 460 480 500
Width ready to go 560 580 610 640 660 680
Width folded 280
Seat depth 400 / 430 / 460
Seat height front / rear variable 420 bis 530 / 390 - 500
Overall height variable 750 bis 980
Back rest height 350 / 380 / 420 / 450
Arm support height 230
Length with footrests 102
max. Client weight 120 kg / 150 kg from SB 480 mm
Empty weight min. 15 kg
Permitted overall
weight		 max. 140 kg / 175 kg from  SB 480 mm
Transport weight 9
Rear wheel 22“ / 24“

Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
