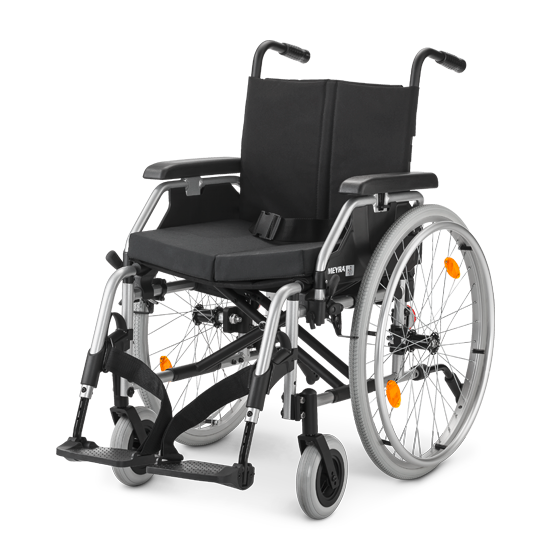

Eurochair ² Pro 2.850

Fields of Application

  • Full equipment chair for long term provision in permanent everyday use
  • Well suited for provision of many disabilities with a high variety of adjustments
  • Mostly application at home, e.g. in case of geriatric provision, many neurological clinical pictures, rheumatism, leg amputation
  • In rehabilitation clinics to achieve therapeutic goals
  • Application for various kinds of drive

Adjustment

  • Manifold adjustment possibilities to the body measure of the user
  • Seat width from 38-50 cm
  • Chassis adjustment by means of an angle adjustable castor stem and bearing block
  • Back adjustment through adjustable belt
  • Variable back angle design
  • Seat depth adjustment from 40-46 cm serially
  • Selection of different armrests and leg supports
  • Wide selection of accessories
  • From 15 kg overall weight
  • User weight up to 150 kg

Operation

  • Foldable
  • Handrim drive/ push drive
  • Leg supports can be swivelled inwards or outwards
  • Lockable flip-back arm supports
  • All rear wheels incl. quickrelease axle
  • Pressure brake
  • Step aid serially

Options

  • Crutch holder
  • Reflectors
  • Anti-tip wheels
  • Horizontal pushing bar
  • Seat belt
  • Brake lever extension
  • Therapy table
  • Auxiliary Drive
  • Double handrims
  • Drumbrake for attendant
Eurochair ² Pro

Knee lever brake

Eurochair ² Pro

Leg rests can be swung inwards and outwards

Eurochair ² Pro

Removable armrests

Eurochair ² Pro

Rubber ferrules as standard

Seat width 380 400 430 460 480 500 530
Width ready to go 580 600 630 660 680 700 730
Width folded 310
Seat depth 400 / 430 / 460 / 490
Seat height front / rear variabel 390 bis 560 / 390 - 520
Overall height variabel 790 - 1.050
Back rest height 400 / 420 / 440 / 460 / 480 / 500
Arm support height 210 - 260
Length with footrests 1.050
power wheel 22" / 24"
max. Client weight 130 kg
Empty weight min. 17,5 kg
Permitted overall
weight		 max. 150 kg
Crash tested ISO 7176-19

Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
