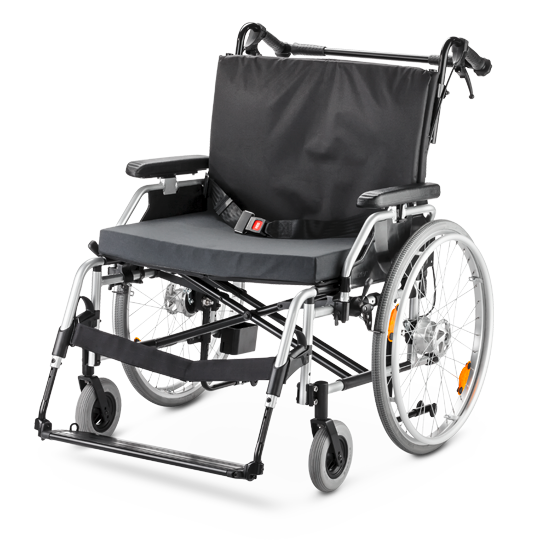

Eurochair ² XXL 2.850

Fields of Application

  • particularly suitable for heavy persons
  • designed for long-term care with high adjustability for independent mobility
  • predominantly for domestic use, but also useful in rehabilitation clinics for achieving therapeutic goals
  • can be used with various forms of propulsion

Adjustment

  • Chassis adjustment by means of an angle adjustable castor stem and bearing block
  • Back adjustment through adjustable belt
  • Variable back angle design
  • Selection of different armrests and leg supports
  • User weight up to 150 kg

Operation

  • Foldable
  • Handrim drive/ push drive
  • Leg supports can be swivelled inwards or outwards
  • Lockable flip-back arm supports
  • Pressure brake
  • Step aid serially

Options

  • Crutch holder
  • Reflectors
  • Anti-tip wheels
  • Seat belt
Eurochair ² XXL

Highly durable

Eurochair ² XXL

Footrest

Eurochair ² XXL

Double cross offers more stability

Eurochair ² XXL

Height-adjustable side guard with depth-adjustable arm supports in series

Seat width 480 500 530 580 650
Width ready to go 680 700 730 780 850
Width folded 310
Seat depth 430 / 460 / 490
Seat height front / rear variable 460 - 520
Overall height 930
Back rest height 400 / 420 / 440 / 460 / 480 / 500
Arm support height 210 - 260
Length with footrests max. 107
Length without footrests max. 84
Rear wheel 61 (24")
max. Client weight 160 kg / 200 kg with CODE 530
Empty weight min. 19 kg
Permitted overall
weight		 max. 185 kg / 225 kg with CODE 530
Transport weight 12
Crash tested ISO 7176-19
