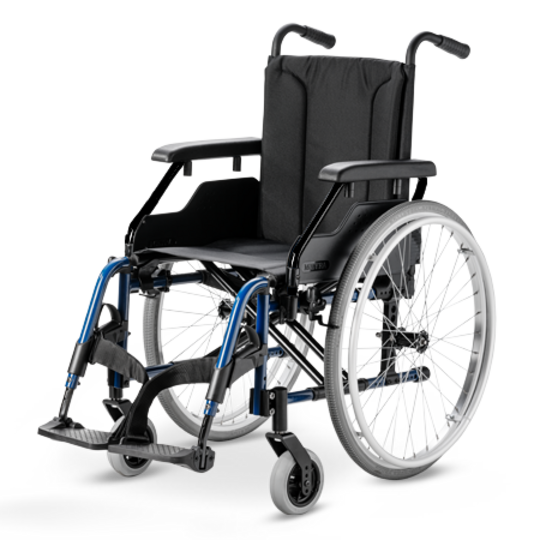

EUROCHAIR STOCK VERSION 1.750
Fields of Application
- In focus is the individual mobility
- Predestined for provision of many disabilities with a high variety of adjustments
- For a lot of neurological clinical pictures, rheumatism, geriatric provision and leg amputations
- In rehabilitation clinics to achieve therapeutic goals
Adjustment
- 2 seat widths in one chair = basic seat width + 30 mm SW adapter
- High variance without component exchange: height adjustable back belt 40, 42, 44 cm and depth adjustable seat belt 400, 430 mm
- Circumferential building block system
- Serial very good adaptation to the kind of handicap
- Adaptations realisable fast and targeted
Operation
- Foldable
- Handrim drive/ push drive
- Leg supports can be swivelled inwards or outwards
- Lockable flip-back arm supports
- All rear wheels incl. quickrelease axle
- Pressure brake
- Step aid serially
- tip assist serially
Options
- Crutch holder
- Reflectors
Seat belt
Angle of steering head is adjustable
Knee lever brake
Modifications are quick and precise
Leg rests can be swung inwards and outwards
Technical specifications
| Seat width | 380 | 400 | 430 | 460 | 480 | 500 | 530 |
|---|---|---|---|---|---|---|---|
| Width ready to go | 560 | 580 | 610 | 640 | 660 | 680 | 710 1) |
| Width folded | 280 | ||||||
| Seat depth | 400 - 460 | ||||||
| Seat height front/rear | 420 - 530 / 430 - 530 | ||||||
| Overall height | 960 | ||||||
| Back rest height | 400 / 420 | ||||||
| Arm support height | 230 | ||||||
| Length with footrests | 1,000 | ||||||
| max. Client weight | 130 kg | ||||||
| Empty weight | min. 15 kg 1) | ||||||
| Permitted overall weight | max. 150 kg | ||||||
| Rear wheel | 550 (22“) | ||||||
| Rear wheel | 7° | ||||||
*applies to wheelchair with pressure brake
