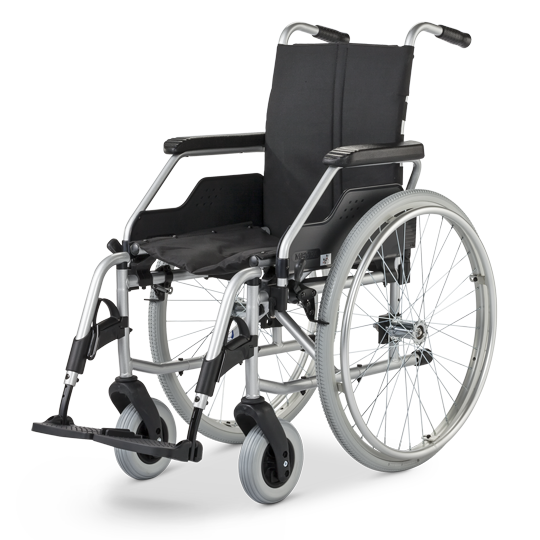

Format 3.940

Fields od Application

  • Push and/or handrim propulsion
  • Home and inpatient area
  • Geriatric care
  • Rheumatism

Adjustment

  • Front seat height is variable without changing parts (470, 490 and 510 mm)
  • The narrowest of its class! SW +180 mm with quick release axle + 200 mm with drum brakes
  • Easy detachment of side guards
  • Standard wheel base extension with one-time optimization of maneuverability for attendant

Operation

  • Foldable
  • Handrim/push propulsion
  • Leg supports swing in and away
  • Lockable armrests folding back, folding behind the backrest
  • All rear wheels with quickrelease axle
  • Pressure brake
  • Step aid serially

Options

  • Crutch holder
  • Reflectors
  • Anti-tip wheels
  • Seat belt
  • Brake lever extension
  • Therapy table
  • Height adjustable leg supports
  • Long side guards
  • Height adjustable side guards
  • Occupant restraint system
  • Drumbrake for attendant
Format

Side guard can be conveniently removed

Format

Seat height variable at the front

Format

Adjustable back strap

Format

Angle adjustable footrests

Seat width 380 400 430 460 480 510
Width ready to go 560 580 610 640 660 690
Width folded 280
Seat depth 400 - 430
Seat height front 470 - 510
Seat height back 440 - 490
Overall length 960
Back height 420
Armrest height 215
Length with footrests 1,040
max. Client weight 130 kg
Empty weight min. 17,5 kg
Permitted overall weight max. 150 kg
Transport weight 10,5
Rear wheel 560 (22")
Rear wheel 610 (24“)

Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
