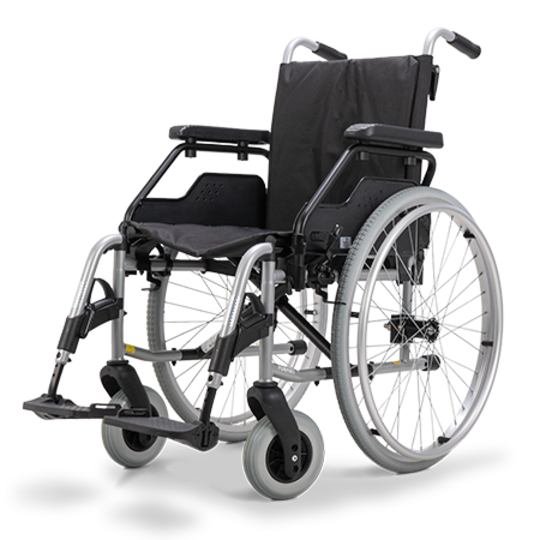

Format Stock version 3.940
Fields od Application
- Push-rim wheelchair drive
- Home and institutional use
- Geriatric care
- Rheumatism
Adjustment
- Front seat height can be adjusted without exchanging components (470, 490 and 510 mm)
- The narrowest in its class! Seat width +180 mm with push-to-lock brake +200 mm with drum brake
- Comfort release function for the side panel
- Standard wheelbase extension
- Standard push handles, height-adjustable by 100 mm and telescopic
- Standard height-adjustable side panels
- Standard premium adaptable backrest with rear pocket
Operation
- Foldable
- Push-rim drive / attendant propulsion
- Leg supports can be swung inward and outward
- Lockable armrests, height-adjustable, foldable to the rear, and foldable behind the backrest
- All drive wheels including quick-release axle
- Push-to-lock brake
- Drum brake for attendant (option)
- Standard tipping aid
Options
- Walking aid holder
- Passive lighting
- Anti-tip wheels
- Safety belt
- Brake lever extension
- Therapy tray
- Height-adjustable leg supports
- Occupant restraint system
Height-adjustable side panels as standard
Height-adjustable push handles as standard
High-quality adjustable backrest as standard
Angle adjustable footplates
| Seat width | 380 | 400 | 430 | 460 | 480 | 510 |
|---|---|---|---|---|---|---|
| Width ready to go | 560 | 580 | 610 | 640 | 660 | 690 |
| Width folded | 280 | |||||
| Seat depth | 400 - 430 | |||||
| Seat height front | 470 - 510 | |||||
| Seat height back | 440 - 490 | |||||
| Overall length | 960 | |||||
| Back height | 420 | |||||
| Armrest height | 215 | |||||
| Length with footrests | 1,040 | |||||
| max. Client weight | 130 kg | |||||
| Empty weight | min. 17,5 kg | |||||
| Permitted overall weight | max. 150 kg | |||||
| Transport weight | 10,5 | |||||
| Rear wheel | 560 (22") | |||||
| Rear wheel | 610 (24“) | |||||
Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
