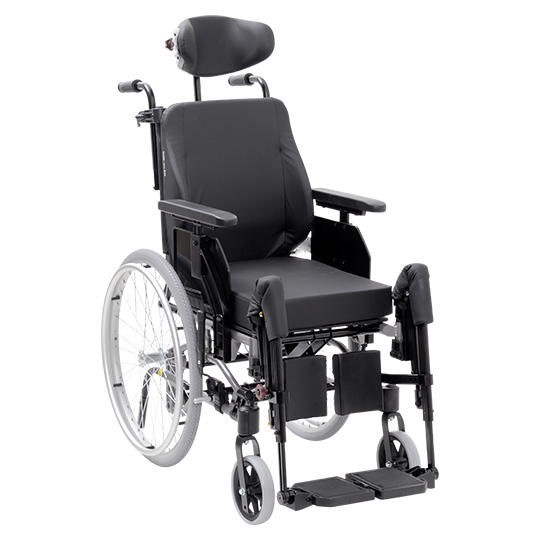

Netti 4U CE Plus 1.215

Scope of Use

  • With its flexible seat width, the Netti 4U CE Plus is particularly suitable as a case-based flat rate chair. Five seat widths with one frame - reducing your storage costs and increasing flexibility for the customer
  • Suitable for both young and geriatric users
  • The CES Plus edition even offers seat depth adjustment of 375 - 450 mm
  • Its compactness makes the Netti 4U CE Plus easy to manoeuvre. Together with the one-handed operation of the armrest, the easily detachable leg and headrest and the hinged brakes, it is the perfect wheelchair for side and sling transfers
  • Available in seat widths 350 to 500 mm (as option plus/minus 40 mm)
  • Approved up to a user weight of 135 kg

Efficiency

  • The Netti 4U CE Plus combines efficiency and individuality at the highest level
  • Economic advantages due to spare parts compatibility with other Netti chairs
  • Long service life
  • Five-year guarantee on the frame

Therapeutic Benefit

  • Flexible seat depth
  • Back and seat tilt with infinitely variable adjustment
  • The Netti 4U CE Plus is characterised by low weight and narrow overall width
  • Large selection of different back cushions
  • One-handed operation of armrest
  • Height-adjustable push handles
  • Libertas back function as option for users requiring enhanced comfort
  • Headrest height, depth and angle-adjustable
  • Angle-adjustable legrest with ergonomic pivot point

Options

  • Tool kit
  • Infusion stand (mounting on the back cross tube)
  • Wheelchair bag
Netti 4U CE Plus

Seat width kit for both extension and reduction

Netti 4U CE Plus

Libertas back function

Netti 4U CE Plus

Adaptable back cushion

Netti 4U CE Plus

Netti Stabil

Seat width       350 400 450 500
Optional seat width flexibility

2 x -20 & 2 x +10/20 mm
Seat depth 375 / 400 / 425 / 450 / 475 / 500
Back height 500 – 600 mm
Seat height range measured to seatplate 440 – 500 mm
Total height 1.050 mm
Weight of wheelchair without cushions 28,5 kg
Max. load 135 kg
Max. load for car transport 135 kg
Tilt angle

-5° - +20°
Recline angle

90° - 135°
Width added to seat width with standard wheels

+180 mm
Leg support length with standard leg support

320 - 680 mm
Arm support height (from seatplate to armpad)

270 - 360 mm

Dimensions in mm, weights in kg, wheels in inches, dimensional tolerances ± 10 mm
