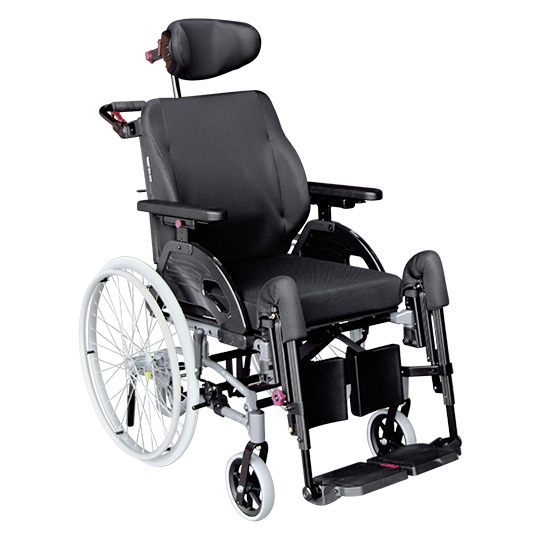

Netti 4U CED 1.225

Scope of Use

  • The Netti 4U CED is particularly suitable for long sitting periods (8+ hours per day) due to the many options allowing for individual adjustment
  • The chair is suitable for both young and geriatric users of all physiques in seat widths 350 - 500 mm
  • The CEDS edition even offers seat depth adjustment of 375 - 450 mm
  • The option of adjustable and interchangeable extenders means that the chair can also be used by users with hip rotation or pelvic rotation
  • The swing-away armrests make the chair well suited for users needing side and sling transfers
  • Well suited for users with neurological conditions such as spasticity or restlessness who hence require dynamic functions
  • Available in seat widths 350 to 500 mm (as option +24 mm/-30 mm)
  • Approved up to a user weight of 160 kg (CEDS 130 kg)

Efficiency

  • Economic advantages due to spare parts compatibility with other Netti chairs
  • Long service life
  • Five-year guarantee on the frame

Therapeutic Benefit

  • Flexible seat depth
  • Back and seat tilt with infinitely variable adjustment
  • The Netti 4U CED is characterised by low weight and narrow overall width
  • Armrest swings back for easy transfer
  • Ergonomic push bar
  • Adaptable back cushion
  • Operating points marked in red
  • Ideal for users with hip asymmetry due to adjustable extenders
  • Libertas back function as option for users requiring enhanced comfort
  • Headrest height, depth and angle-adjustable
  • Angle-adjustable legrest with ergonomic pivot point

Options

  • Clinic kit
  • Tool kit
  • Infusion stand (mounting on the back cross tube)
  • Wheelchair bag
  • Universal device rack
Netti 4U CED

Dynamic functions - leg and back

Netti 4U CED

Nette Grandis legrests

Netti 4U CED

Aluminium back

Netti 4U CED

Universal rack

Seat width     350 400 430 450  500
Optional seat width flexibility

2x -15/+ 2x +15 mm
Seat depth 375 / 400 / 425 / 450 / 475 / 500
Back height 500 – 600 mm
Seat height range measured to seatplate 440 – 500 mm
Total height 1.050 mm
Weight of wheelchair without cushions 29 kg
Max. load

160 (130) kg
Max. load for car transpor

136 (130) kg
Tilt angle -5° – +20°
Recline angle 92° – 137°
Width added to seat width with standard wheels

180 mm
Leg support length with standard leg suppor

320 - 680 mm
Arm support height (from seatplate to armpad)

265 - 355 mm

Dimensions in mm, weights in kg, wheels in inches, dimensional tolerances ± 10 mm
