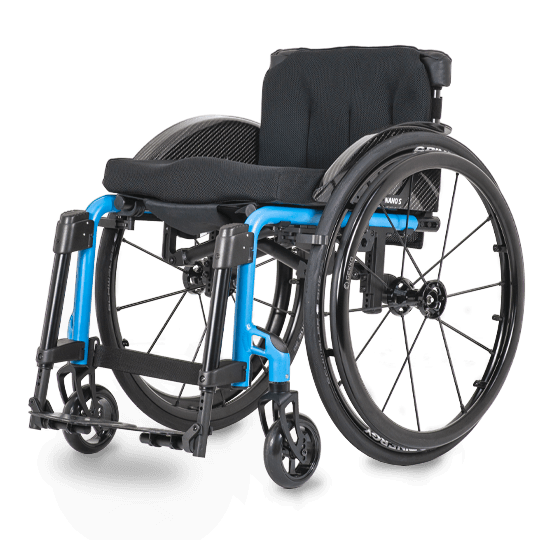

NANO S 1.157

Scope of Use

  • For permanent and long-term care
  • For paraplegic care
  • Very well suited for a wide range of medical conditions, including the severely afflicted
  • Users with loss of lower extremity function (lateral transfer, hand rim propulsion)
  • For neurological disorders
  • For users with some remaining walking and standing ability (sit to stand transfer)

Efficiency

  • Permanent fitting with possibilities for adapting to changes in function reduces follow-up costs
  • Extensive standard equipment minimises the need for costly custom design
  • Minimum wear due to high-quality attachments
  • High degree of compatible parts

Therapeutic Benefit

  • Maximum smoothness of ride and low tare weight encourage independence of the user
  • Fine adjustment of back element, seat and suspension enable adaptation to changes in function and individual user requirements
  • Extensive range of equipment for longterm users
  • Stabilisation and mobilisation of users with neurological medical conditions, e.g. with best possible smooth-running properties, good support when sitting,
    and low weight
  • Straight front construction and swingaway/detachable legrests enable the user to move up close to everyday objects and movement therapy devices with ease
  • Folding mechanism for independent loading into car

Options

  • Retainer strap with buckle
  • Passive lighting
  • Hand compressor
  • Accessory net
  • Walking aid holder in conjunction with stepper tube
NANO S

Optimised release of the legrest for users with limited hand and/or upper body function

NANO S

Elegant frame concept

NANO S

Side panel with height-adjustable armrest, one-handed operation

NANO S

Double cross brace for rigid frame-like ride performance

Total width 490 - 740
Frame length (incl./excl. legrests) 835 - 995 / 690 - 850
Width 490 - 690
Width, folded 320
Total height 600 - 970
Back height 250 - 450
Front/back Seat height 450 - 550 / 360 - 510
Seat width 320 - 480
Seat depth 380 - 500
Lower leg length 350 - 500
Armrest height 200 - 275
Centre of gravity 35 - 147
Wheel size, front 4" - 7"
Wheel size, rear 24" - 26"
Legrest angle 86°
Weights
Permissible total weight 145
Max. user weight 130
Empty weight from 10
Back angle in accordance with STANDARD -5 / 0 / 5 / 10

Dimensional tolerances ± 10 mm, ± 2°, data subject to design changes
