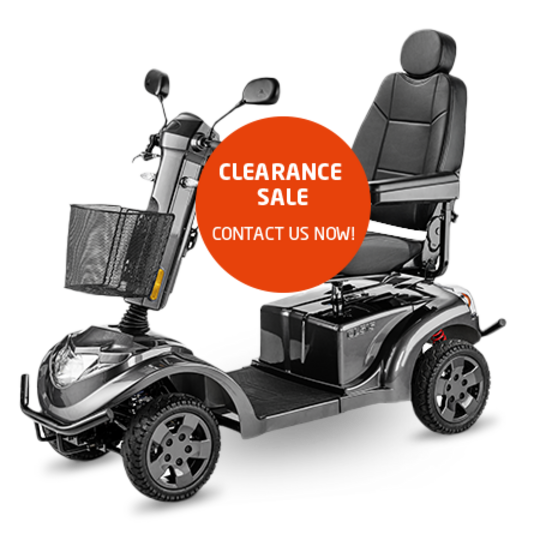

CL 515 1.274

Adjustment

  • The backrest angle, back extension and the height of the seat and armrests are adjustable
  • The seat has adjustment rails and can be rotated through 360°

Operation

  • Very simple operation
  • Smooth manual steering
  • Speed control rocker switch for thumb and finger activation
  • Mechanical release of the spring-loaded brake
  • Self-explanatory control panel with speed pre-selection options

Options

  • Seat heating
  • Walking aid holder
  • Slip bag
  • Rear marking plate acc. to ECE-R69
  • TÜV certificate für type-approval, only in conjunction with 10 km/h variant
CL 515

State-of-the-art LED technology

CL 515

700/3,000 Watt motor

CL 515

LCD colour display with illuminated keypad

CL 515

Luxury seat with infinitely variable adjustmen

Length 1,650
Height 1,110
Width 680
Armrest height 250
Seat height 500 - 610
Seat depth 460
Seat width, adjustable 460
Spring-loaded luxury seat
Automatic safety brake
Number of wheels 4
Drive wheel 4.00.8
Wheel diameter drive wheel 315
Ground clearance 110
Turning radius 1,950
Motor power 700 - 3,000 W
 Batteries 80 Ah
Charger 12 A
Electronics PG120 A
Range up to 40 km
Permissible uphill / downhill gradient 10° (18 %)
Empty weight with/without battery 100/150
Permissible user weight 205
Permissible total weight 355
Speed 15

* The (+) variant encompasses a maximum seat width of 700 mm
Dimensions in mm, weight in kg, wheels in inches, speeds in km/h
Dimensional tolerances of ± 10 mm
