Fields of Application

  • In focus is the individual mobility
  • Full equipment for continuous daily use
  • Predestined for provision of many disabilities with a high variety of adjustments
  • For a lot of neurological clinical pictures, rheumatism, geriatric provision and leg amputations
  • In rehabilitation clinics to achieve therapeutic goals
  • For tall and broader people

Adjustment

  • 2 seat widths in one chair = basic seat width + 30 mm SW adapter
  • High variance without component exchange: height adjustable back belt 400, 420, 440 mm and depth adjustable seat belt 400, 430 mm
  • 12 seat heights serially adjustable
  • Circumferential building block system
  • Serial very good adaptation to the kind of handicap
  • From seat height 390 mm applicable for hemiplegics
  • Adaptations realisable fast and targeted

Operation

  • Foldable
  • Handrim drive/ push drive
  • Leg supports can be swivelled inwards or outwards
  • Lockable flip-back arm supports
  • All rear wheels incl. quickrelease axle
  • Pressure brake
  • Step aid serially

Options

  • Crutch holder
  • Reflectors
  • Anti-tip wheels
  • Manoeuvre rollers
  • Seat belt
  • Brake lever extension
  • Therapy table
  • Hemi options
  • Auxiliary drive
  • Seat belt
  • Double handrims
  • Reinforced version
  • Occupant restraint system
  • Drumbrake for attendant

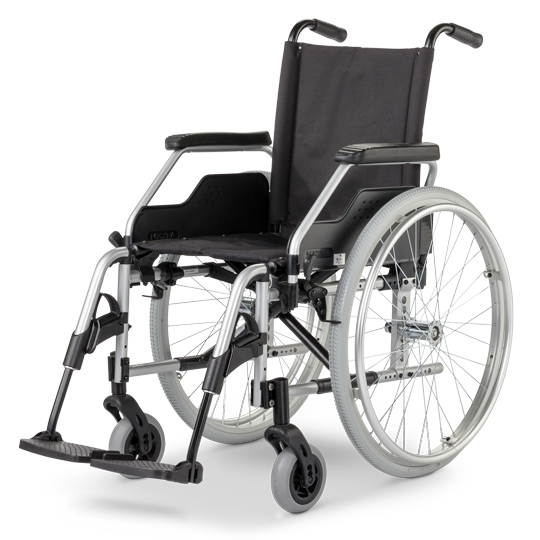

Eurochair

Angle of steering head is adjustable

Eurochair

Knee lever brake

Eurochair

Modifications are quick and precise

Eurochair

Leg rests can be swung inwards and outwards

Technische Daten

Seat width 380 400 430 460 480 500 530
Width ready to go 560 580 610 640 660 680 710
Width folded 280
Seat depth 400 / 430 / 460
Seat height front/rear variable 430 to 515 / for hemi option 390 - 430

Overall height 960
Back rest height 400 / 420 / 440
Arm support height 230
Length with footrests 1,040
max. Client weight 130 kg
Empty weight min. 16 kg
Permitted overall weight max. 150 kg
Rear wheel 550 (22“)
Rear wheel 600 (24")

Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
